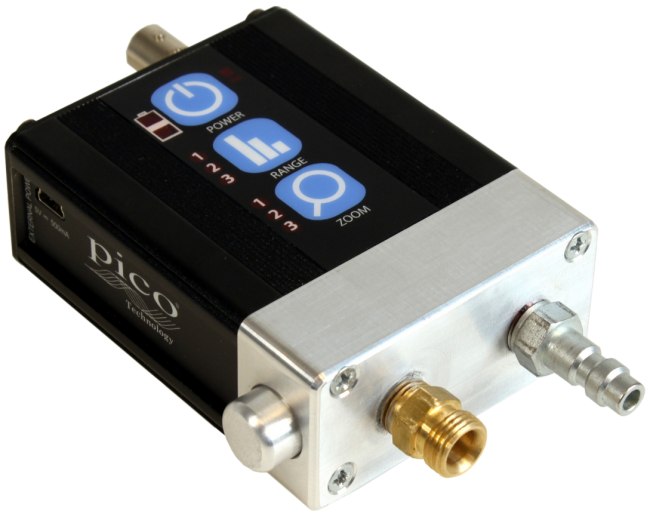

Met de ongelooflijke resolutie en nauwekurigheid van de WPS500X Automotive druk (Pressure Transducer) kunt een snelle en accurate druk analyze in kaart brengen van verschillende automotive systemen.


  • Zuivere meting up to 500 psi ( -1 ~ 34,47Bar)
  • Zeer snelle 100 µs response tijd
  • Zoom functie voor complexe analyze mogelijkheden
  • Interne oplaadbare LiPo battery
  • Geïntegreerde Druk / pressure relief / bleed-off valve
  • Auto zeroing
  • Hoge storings onderdrukking
  • Temperatuur gecompenseerd

De WPS500X geeft een extreem snelle  100 µs response tijd van 0% to 90% of full scale en gevoeldigheid naar ongeveer 0.07 psi (5 mbar). Dit levert u een accurate representatie van snelle veranderende signalen die zich voor kunnen doen tijdens snelle pieken en dalen van de druk meting.

Three pressure ranges = performance and versatility

The three pressure ranges of the WPS500X allow for accurate measurement and analysis of many automotive pressures including cylinder compression, fuel pressure, intake manifold vacuum and even pulses from the exhaust.

Range 1

figure 1

Running compression waveform

The first range gives you high resolution and accuracy for high-pressure tests such as cranking and running cylinder compression or fuel pressure testing. Not only is this test a great way for you to find compression issues, but it is also an excellent way for you to identify cam timing issues such as jumped timing belts and stretched timing chains — this is especially useful on multi-cam engines that may not have a cam sensor on each camshaft.

Range 2

The second range measures from -15 to 50 psi (approximately -1 to 3.45 bar). This range is ideal for vacuum tests and fuel system tests. When testing these systems you will find the zoom function is especially useful as it makes it easy to analyse the valves operating with the vacuum waveform, or the injectors through the fuel waveform.

figure 2

Intake manifold vacuum during snap-throttle

Range 3

With the third range you can measure -5 to 5 psi (approximately -0.34 to 0.34 bar). This setting is sensitive enough to allow you to analyse small pressures or pulses such as pulses from the exhaust.

Range Pressure range Accuracy Response time Output scaling
1 -15 to 500 psi
-1 to 34.47 bar
1% of scale 100 µs 10 mV/1 psi
(500 psi = 5 V)
2 -15 to 50 psi
-1 to 3.45 bar
1% of scale 100 µs 100 mV/1 psi
(50 psi = 5 V)
3 -5 to 5 psi
-0.34 to 0.34 bar
5% of scale filtered 1 V/1 psi
(5 psi = 5 V)

Built-in zoom function for enhanced analysis

figure 3

Using the zoom function to show
intake valve pulses (ChA)

The zoom function operates by removing all of the voltage from the signal below 100 Hz and then multiplying the remaining signal up to 100 times. For example: Let's say your transducer is connected to the intake manifold vacuum on a running engine at idle with the transducer set to mode 2 (-15 to 50 psi) and the waveform on your PicoScope is at -9 psi. The fluctuation in the signal caused by the valves opening and closing versus atmospheric pressure forcing air into the manifold will be visible, but will only make up a small portion of the overall signal. Selecting the zoom function will bring the waveform up to the zero line and the fluctuations will be magnified making analysis of this component of the signal much clearer.

What do I get?

  • WPS500X pressure transducer
  • Carry case
  • USB cable
  • BNC to BNC cable

Nothing compares to the WPS500X

It is not unusal to require a different pressure transducer for each diagnostic test you want to run. The WPS500X eliminates this need by giving you one ultra-high resolution transducer that can be used for a multitude of automotive diagnostic applications. With three pressure ranges, a zoom function, pressure relief valve and a rechargeable Li-Po battery all enclosed in a durable housing the WPS500X is the cost-effective answer to pressure analysis.

When price, performance and versatility matter, there is nothing that compares to the WPS500X Automotive Pressure Transducer.

Cat No: Product
15-PP652
PP652
WPS500X Automotive Pressure Transducer Despatched within 5-6 weeks
Contents:
  • WPS500X Pressure Transducer
  • Carry case
  • USB cable
  • BNC to BNC cable
15-TA085 zoom Vacuum hose In stock
15-TA129 zoom Universal vacuum adaptor In stock

More details

15-TA086 zoom Bleed hose Low stock

More details

15-TA087 zoom Exhaust adapter Low stock
15-TA088 zoom M14 high-strength compression hose with adapter for deep reach spark plugs In stock
15-TA103 zoom M10 high-strength compression hose In stock
15-TA104 zoom M18 high-strength compression hose In stock
15-TA105 zoom Ford Triton compression hose In stock
15-TA083 zoom Gasoline pressure fuel hose with large Schrader valve In stock

More details

15-TA117 zoom Gasoline pressure fuel hose with small Schrader valve In stock

More details

15-PP794 zoom Set of 2 gasoline pressure fuel hoses, large and small Schrader valve In stock

More details



HOME RMA PROCEDURE VOOR RETOUR ZENDINGEN BESTELLEN BEDRIJFS PROFIEL
LEVERINGSVERKOOP VOORWAARDEN INDUSTRIELE KOFFERS PICO PRIJSLIJST CONTACT

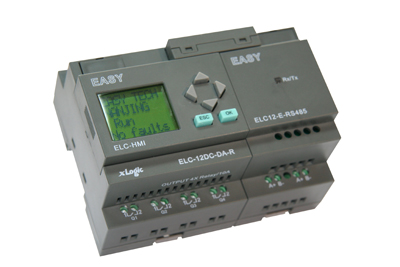

PLC van xLogic
